Learn How to Wire a Server to a Network Effectively

Establishing a robust and stable internet connection is crucial for activities such as streaming, online gaming, and remote work. A wired home network is established by connecting computers and network cables. For a wired home network, use Cat5e, Cat6, Cat6a, or Cat7 cables. The higher the Cat rating, the more bandwidth and higher speeds the cable can achieve.

This comprehensive guide will walk you through the essential steps of wiring a server to a network effectively, ensuring optimal performance and reliability for your infrastructure. Proper server network installation not only improves network performance but also facilitates easier troubleshooting and future upgrades.

Understanding Server Network Infrastructure

Understanding the intricacies of server network infrastructure is vital for IT professionals and network administrators. A well-planned infrastructure is crucial for the efficient operation of servers and network equipment.

Server vs. Network Racks

When setting up a server network, one of the first considerations is the type of rack to use. Server racks are designed to hold servers and other heavy equipment, while network racks are typically used for networking equipment like switches and patch panels. The choice between the two often depends on the specific needs of the installation.

Rack Units (U) and Their Importance

Rack units, or “U,” are a standard measure for the height of equipment in a rack. One rack unit is equal to 1.75 inches. Understanding rack units is crucial for planning the layout of your server network infrastructure, as it helps in determining the space available for equipment and ensuring that all necessary devices fit within the rack.

Planning Your Server Network Setup

Effective planning is key to a successful server network setup. This involves assessing your current and future equipment needs, including servers, switches, and power distribution units. A detailed rack diagram can help map out the placement of equipment, considering factors like weight distribution, cable management, and airflow.

Planning Aspect	Description	Importance
Equipment Needs Assessment	Evaluate current and future needs for servers, switches, and other equipment.	High
Cable Management	Plan for horizontal and vertical cable pathways to minimize length and maintain organization.	Medium
Airflow and Cooling	Ensure adequate airflow to prevent overheating of equipment.	High

By carefully planning your server network infrastructure, you can ensure a scalable, efficient, and reliable network that meets your organization’s needs.

Essential Equipment for Server Network Wiring

A well-organized server network wiring requires specific essential equipment to ensure optimal performance. The right equipment not only enhances the efficiency of data transfer but also simplifies maintenance and upgrades.

Cables and Connectors

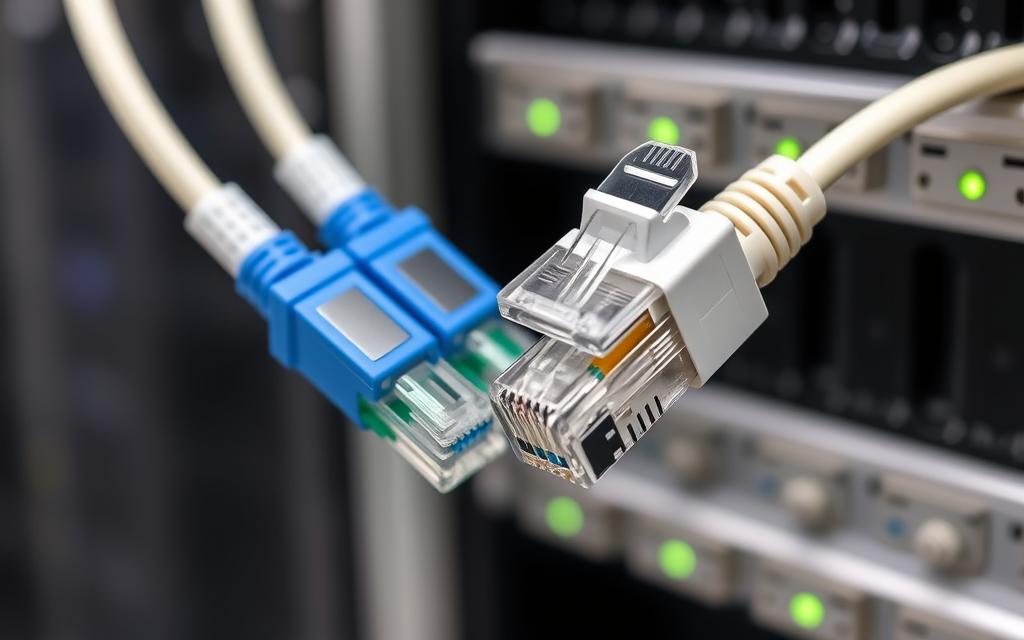

Server network cables are the backbone of any network infrastructure. High-quality cables and connectors are crucial for reliable data transmission. When selecting network cables, consider factors such as bandwidth, length, and shielding to minimize interference.

Learn More

Tools Required for Installation

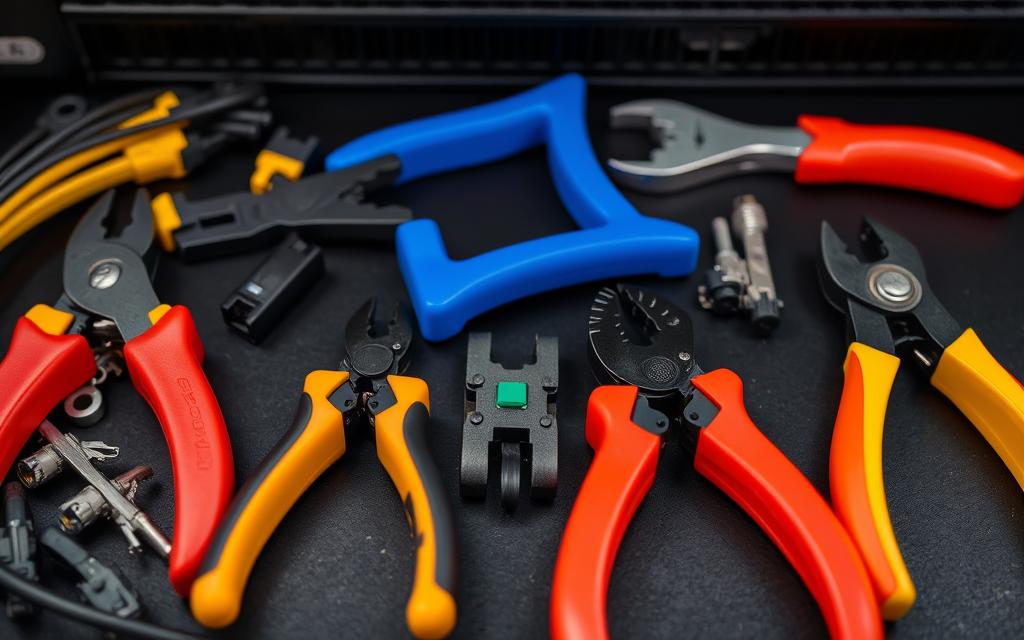

Having the right tools for server installation is vital for a smooth setup process. Essential tools include cable cutters, strippers, and crimpers. These tools help in preparing and terminating cables accurately.

Learn More

Patch Panels and Cable Management Systems

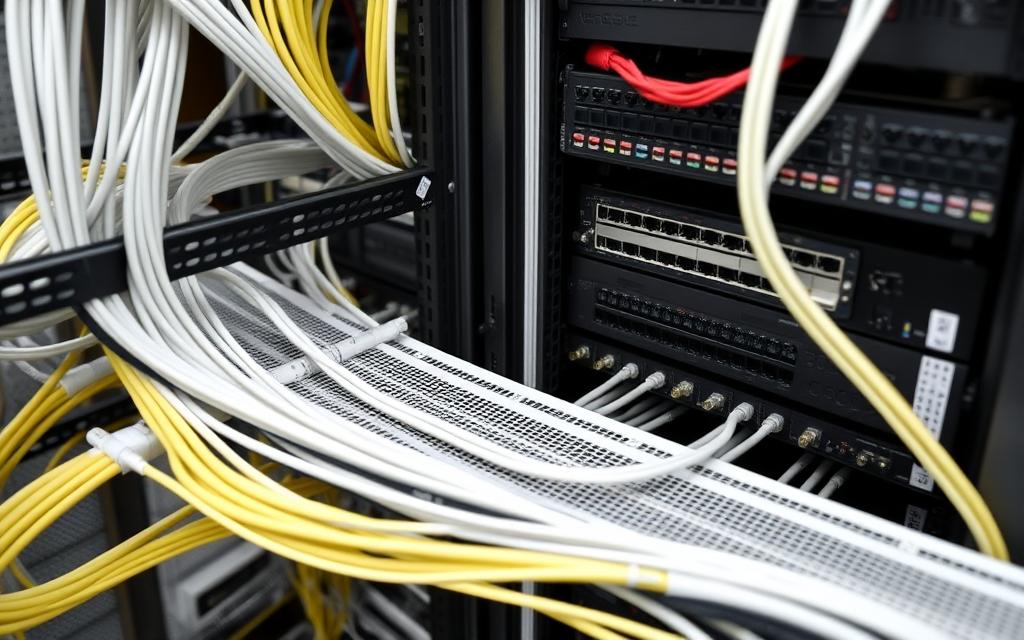

Patch panels serve as the central connection point in your server network, providing organized termination points for horizontal cabling. They facilitate easy changes to network connections. Modular keystone patch panels offer greater flexibility for mixed media types.

• Patch panels provide organized termination points for horizontal cabling.
• Choose between standard and modular keystone patch panels based on your needs.
• Horizontal cable managers should be installed above and below patch panels.
• Vertical cable management systems are essential for larger installations.
• Cable management accessories like D-rings and cable trays help maintain cable separation.
• Always use velcro straps rather than zip ties for bundling cables.

Learn More

Effective cable management is critical for maintaining a organized and efficient server network. This includes using patch cable managers and D-ring organizers to keep patch cords organized. For every 1U 24-port patch panel, it’s recommended to leave 2U of space above and/or below for patch cord management.

How to Wire a Server to a Network: Step-by-Step Guide

A well-structured network setup begins with properly wiring your server, ensuring a stable and efficient connection. This process involves several critical steps that must be executed with precision.

Preparing Your Server and Network Equipment

Before starting the wiring process, ensure that your server and network equipment are properly prepared. This includes unpacking and inventorying all necessary components, such as cables, patch panels, and connectors. Verify that all equipment is compatible and meets the requirements for your network setup.

Connecting the Service Processor Management Ports

Begin by connecting the service processor management ports. This involves attaching the appropriate cables to the service processor and ensuring they are securely connected to the management network. Use a patch cable to connect the service processor to the nearest patch panel or network switch.

Connecting the Ethernet Network Cables

Next, connect the Ethernet network cables to the server’s network interface cards (NICs). Ensure that each Ethernet cable is securely connected to both the server and the network switch or patch panel. Use cable management systems to organize and secure the cables, preventing damage or strain.

Verifying Cable Connections

After completing all cable connections, perform a systematic verification to ensure each connection is properly seated and secured at both ends. Use a cable tester to verify the integrity of each Ethernet connection, checking for proper pin mapping, continuity, and absence of shorts or crossed pairs. Ensure that the server can slide smoothly in and out of the rack without binding or damaging the cables.

By following these steps and verifying each connection, you can ensure a reliable and efficient network setup for your server.

Power Considerations for Server Installations

The power system for a server installation is a vital component that demands thorough consideration. Ensuring that the server is properly powered is crucial for its operation, efficiency, and longevity.

AC Power Requirements and Connections

When it comes to AC power for server installations, understanding the requirements and ensuring proper connections is essential. Servers typically require a reliable AC power source that can supply the necessary voltage and current. The specific AC power requirements can vary depending on the server model and its configuration.

For instance, the Sun Netra X4250 server requires a certain level of power supply. Ensuring that the AC power connections are secure and meet the server’s specifications is vital for its operation.

Server Model	AC Power Requirement	Maximum Operating Input Current
Sun Netra X4250	500 W	11.7 A

DC Power Options and Specifications

DC power is another option for server installations, particularly in data centers and telecommunications facilities where DC power infrastructure is already in place. The Sun Netra X4250 server, for example, can operate within a DC power range of -40 VDC to -75 VDC.

• Use copper conductors of the appropriate gauge (typically 12 AWG) for connections between the DC power source and server power supplies.
• Ensure proper polarity when connecting DC power, with clear identification of negative (-48V) and positive (return) terminals.
• Install appropriate circuit protection devices, such as 20A double-pole fast-trip DC-rated circuit breakers.

Cable Management Best Practices

Proper cable management is vital for reducing errors, improving airflow, and enhancing the overall cooling of equipment in server racks. Effective cable organization is not just about maintaining a tidy rack; it’s crucial for ensuring the reliability and performance of server networks.

Organizing Cables in Server Racks

Organizing cables within server racks is essential for maintaining adequate airflow, as cable congestion can block ventilation and lead to equipment overheating. Using thinner gauge patch cables (28AWG) where appropriate can reduce cable bulk and improve airflow.

Using Cable Management Accessories

Cable management accessories play a crucial role in maintaining a well-organized server rack. Consider using perforated or mesh cable management accessories that allow air to flow through, rather than solid designs that can create airflow barriers.

Maintaining Proper Airflow and Cooling

Implementing a front-to-back airflow pattern in your rack is crucial. Ensure that cable management does not obstruct air intake at the front or exhaust at the rear of equipment. Regularly auditing and cleaning your cable management system can prevent dust accumulation and ensure continued optimal airflow throughout the rack.

Labeling and Documentation Strategies

Effective labeling and documentation are crucial for maintaining a well-organized server network infrastructure. This ensures that the network remains manageable and scalable over time.

Creating an Effective Labeling System

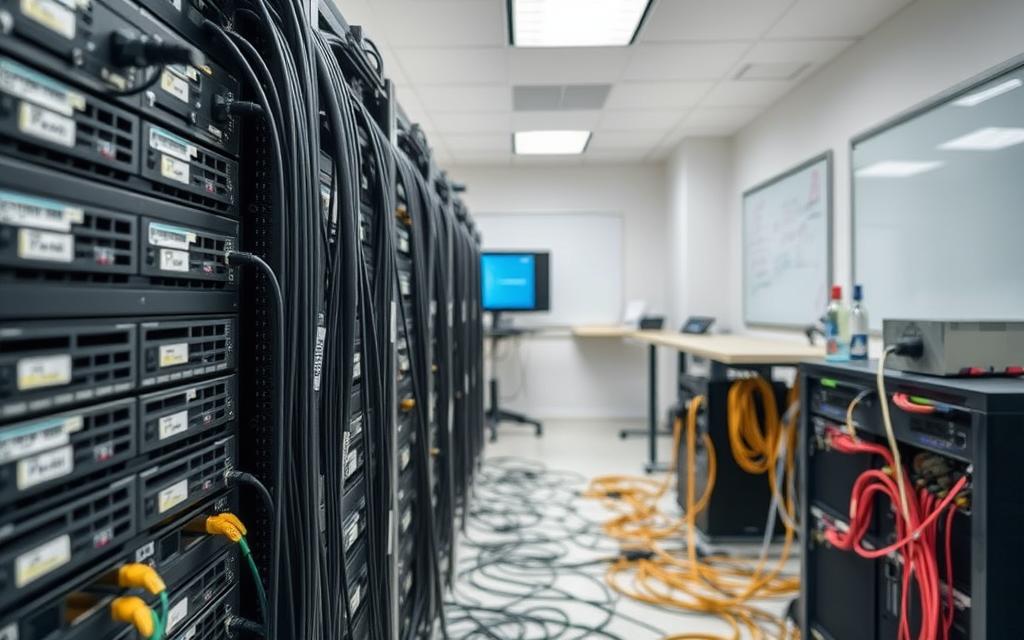

For home and SOHO (Small Office/Home Office) environments, labeling does not need to be overly formal, but it should be durable and well-documented. The ANSI/TIA-570-E Residential Telecommunications Infrastructure Standard provides guidance for residential settings. In commercial environments, labeling should follow the contract specifications or industry standards like ANSI/TIA-606-D Administration Standard for Telecommunications Infrastructure, which dictates labeling based on the installation’s complexity.

Documenting Your Server Network Setup

Comprehensive documentation is vital for server network management. This includes creating rack diagrams, mapping ports, detailing IP addressing schemes, and configuring equipment. It’s essential to maintain both digital and physical copies of the documentation, with the physical copy stored at the rack location for quick reference during troubleshooting.

Documentation Type	Description
Rack Diagrams	Visual representations of the server rack configuration
Port Mappings	Detailed mappings of server ports to patch panels and wall outlets
IP Addressing Schemes	Documentation of IP addresses assigned to network devices

As emphasized by industry standards, “documenting power connections thoroughly, including which devices connect to which power sources and the load distribution across circuits and phases, is crucial.” Regular updates to the documentation ensure it remains accurate and useful throughout the infrastructure’s lifecycle.

Bonding and Grounding Requirements

Proper bonding and grounding are crucial for the safe and effective operation of server networks. A well-implemented grounding system protects equipment from electrical surges and ensures the reliability of data transmission.

Understanding Grounding Importance

Grounding is essential for preventing electrical shocks and equipment damage. It provides a safe path for electrical current to the earth, thereby protecting both personnel and equipment. A proper grounding system is vital for the overall safety and performance of server installations.

Proper Bonding Techniques for Server Racks

Bonding involves connecting metal parts together to ensure electrical continuity. For server racks, this means connecting all metal components to a common grounding point. This technique helps prevent voltage differences between equipment, reducing the risk of electrical shock. Proper bonding techniques require careful planning and execution to ensure that all components are securely connected to the grounding terminal.

Safety Considerations and Standards

Adhering to industry standards, such as ANSI/TIA-607-E, is crucial for ensuring that bonding and grounding systems meet safety requirements. Regular inspections and tests of grounding systems are necessary to maintain their effectiveness over time. It’s also important to follow proper electrical safety procedures when working with grounding systems, including the use of personal protective equipment.

By understanding the importance of grounding, implementing proper bonding techniques, and adhering to safety standards, you can ensure a safe and reliable server network operation.

Conclusion

Effective server network wiring is the backbone of any reliable IT infrastructure, requiring careful planning and execution. As we’ve explored throughout this guide, setting up a server network involves more than just connecting cables; it demands a comprehensive understanding of the infrastructure, including patch panels and cable management systems.

To ensure reliability and performance, it’s crucial to adhere to industry best practices, from selecting the appropriate equipment to implementing comprehensive cable management. Proper documentation and labeling are also essential, providing critical information for current and future administrators.

By following the principles outlined in this guide, you’ll be able to create a professional, efficient, and scalable network infrastructure, whether you’re setting up a small business server or an enterprise data center. Regular maintenance and periodic audits will extend the life of your infrastructure and maintain optimal network performance as your network evolves.

In conclusion, a well-planned and executed server network wiring setup is crucial for improved reliability, easier troubleshooting, and simplified expansion. By prioritizing cable management, bonding, and grounding, you’ll ensure a robust and efficient network that supports your organization’s needs.

FAQ

What are the key considerations when planning a server network setup?

When planning your server network setup, consider the number of devices, the type of equipment, and the required rack units (U). Ensure you have sufficient space in your server racks and plan for future expansion.

What type of cables are recommended for a server network installation?

For a server network installation, copper or fiber optic cables can be used, depending on the specific requirements. Ethernet cables are commonly used for network connections.

How do I ensure proper cable management in my server racks?

To ensure proper cable management, use cable management accessories such as cable ties, cable organizers, and patch panels. This will help maintain a clean and organized cabling system.

What are the benefits of using a patch panel in my server network setup?

A patch panel provides a centralized location for managing network cables, making it easier to add, remove, or reconfigure connections. It also helps to reduce cable clutter and improve overall cable management.

What are the power requirements for a typical server installation?

The power requirements for a server installation depend on the specific equipment being used. Ensure you have sufficient power supplies and consider using redundant power supplies for critical systems.

Why is grounding important in a server network installation?

Grounding is essential for ensuring the safety of personnel and equipment. Proper grounding helps to prevent electrical shock and reduces the risk of equipment damage.

What are the best practices for labeling and documenting my server network setup?

To ensure effective labeling and documentation, create a comprehensive labeling system and maintain detailed records of your server network setup, including cable connections and equipment configurations.
